Fully Automatic Laundry Soap Production Line with Soap Cutting Stamping Unit
Main categories: Laundry Bar Soap Making Machine, Toilet Soap Plodder Machine, Detergent Soap Wash Powder Machine, Soap Pack Machine, Soap Stamp Machine
In your inquiry, please let me know
1, Toilet soap or laundry soap, which soap will you make?
2, Capacities are 150-300, 300-600, 600-1000kg/h, 2000-3000kg/h . what capacity do you need?
3.what is the material? oil or soap noodles?
Specification
Main process
1. Mix all materials by mixing agitator, grind soap noodles by three-roller mill, make soap materials into soap bar by vacuum plodder, and cut soaps by stamping machine.
2. Distribution boxes are used to control all the motors of machines, and conveyors are used to transport soap materials.
3. Water pump is used to make the water to cool down the vacuum plodder, and vacuum pump is used to vacuumize the soap materials.
4. The parts of mixing agitator and vacuum plodder that touch the soap materials can be made of stainless steel 304.
|
Model
|
XT300
|
XT500
|
XT1000
|
|
Capacity
|
100-300kg/h
|
300-600kg/h
|
600-1000kg/h
|
|
Screw diameter
|
160mm
|
300mm
|
400mm
|
|
Screw rotary speed
|
Up screw 10rpmBelowscrew 8-16rpm
|
Up screw12rpmBelow screw 8-16rpm
|
Up screw12rpmBelow screw 10-16rpm
|
|
Motor
|
13kw
|
18.5kw
|
33kw
|
|
Soap mould
|
According to requirement
|
|
Soap stamping machine
|
For toilet soap
|
|
Soap cutting machine
|
For laundry bar soap
|
|
Voltage
|
According to requirement
|
JB125 Mixer:
The special designed blades, the soap noodles and the ingredients can be mixed well and even, and dyes and ingredients can fully blend into the noodles, meeting different customer requirements. After the mixing, products are discharged by the bottom discharging door.Easy to use, simple to operate
S260 Three-Roller Mill
The Three Roll Mill is used for soap refining. Three rolls are horizontally placed with different rotating speeds. The refining function is achieved by pressing and squeezing force between the adjacent rolls. The main frame is made of high quality stain structure, strong and solid. All gears are precisely manufactured and bathed in oil lubricants for long running life with lower noise, less wearing and better reliability. Rolls are made of special alloy, high hardness, anti-wearing capability, and with water chilling system. Gap between rolls can be adjusted easily for different refining effects and production capacity needs.

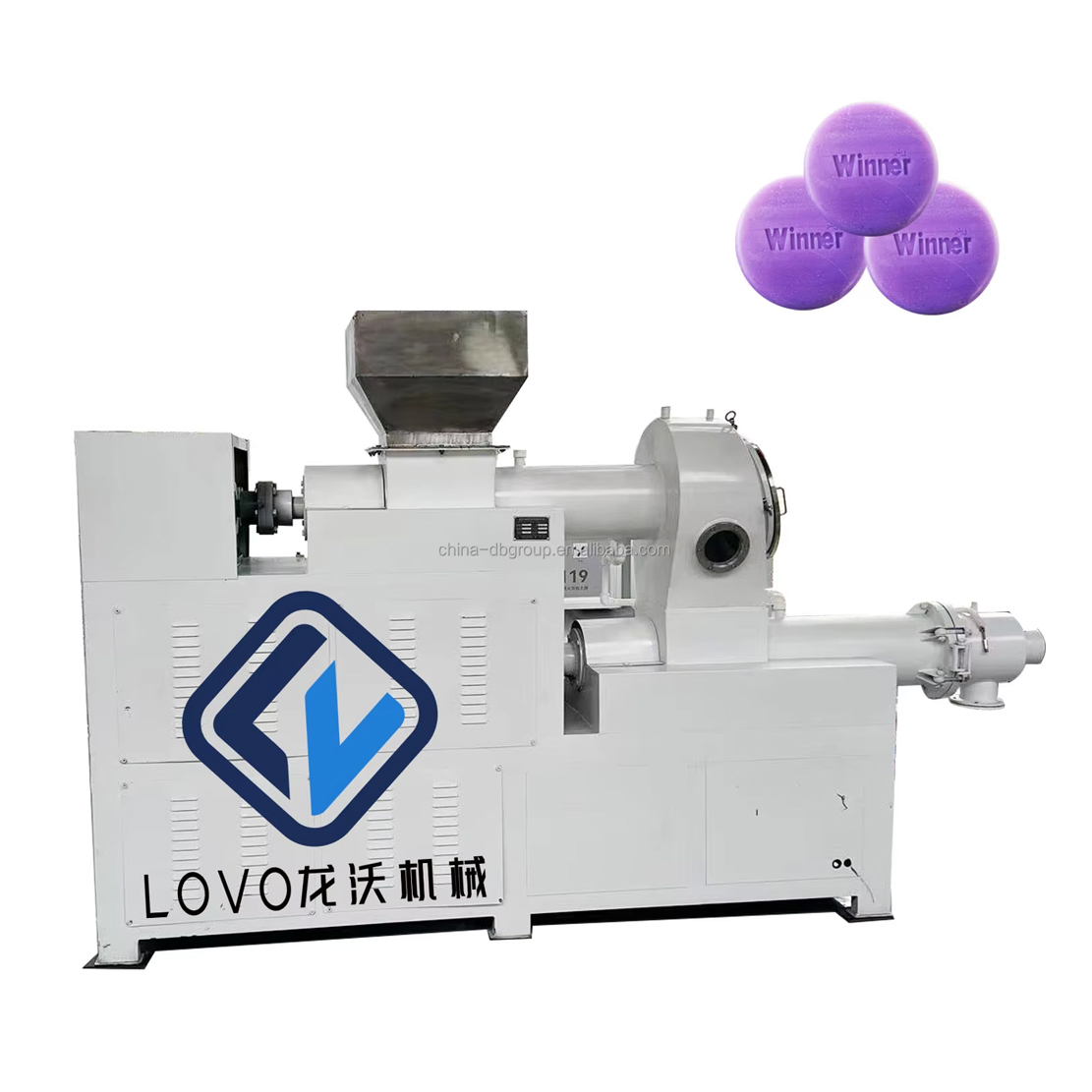

C219 Double-Layer Vacuum Plodder:
This machine has two layer screw, driven by independent driving and transmission system. The first plodder is acting as a simplex refiner to make soap pellets in the vacuum condition. In the final plodder, the soap is pressed and extruded out in billets through the orifice to feed the downstream cutter or stamper. The final plodder speed can be adjusted by VFD. There is a level sensor on the vacuum chamber door to realize the auto run and stop control of the first plodder. Specially designed and continuously improved water cooling system and the different screw inner diameter and pitch design are especially suitable for the laundry soap and toilet soap.
Electric cutting machine:
It is used for transparent soap and soap bars squeezed out by soap bar making machines, it can be rolled and cut into pieces by the machine continuously and automatically. It has an electronic cursor tracking system and can cut soap by any size and weight after computer setted. It is driven by soap bars, and the finished soap is accurate to ±1g/±1mm. It can correctly roll and print the brand or pattern in the middle of each soap body, and the finished soap is vertical, parallel, beautiful, and fast.
PLC Brand: DELTA
Servo control system brand: DELTA
Soap stamp machine:
The one-dozen-one soap freezing printer uses a standard one-dozen one mold. This machine can print various soaps with different patterns, different fonts, different shapes and grams.
Production capacity :80-120cpm
capacity:300-600kg/h
Power:3kw
Punch frame reciprocating stroke: 124mm
Moving table reciprocating stroke: 115mm
Dimensions:1480*750*1100mm
Weight:1750kg
Molds and Finished Products
